Rata Bale Clamp
Rata Bale Clamp
Model (Code) WBC001
Open Width (m) 2.1
Weight (kg) 240
Lift Capacity (kg) 2,100

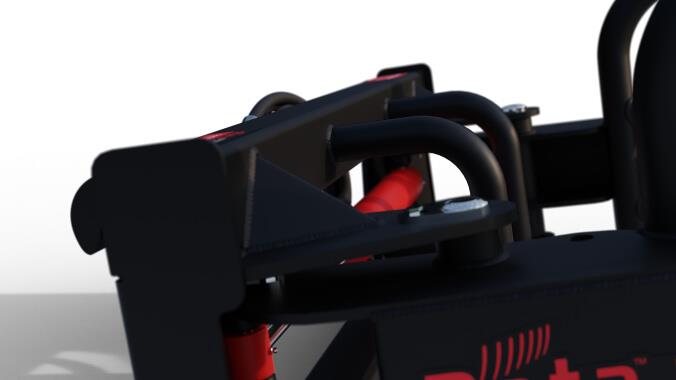

Heavy Duty Build
Rata Bale Clamps incorporate several features to make them the toughest Wrapped Bale Grabs on the market. Heavy duty steel plate & gusseting such as the above picture ensure great reliability & high lift capacity!

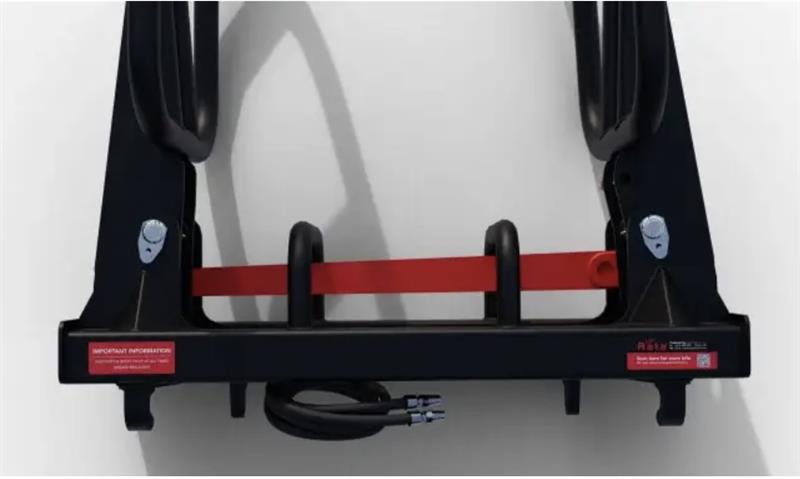

Greasable Equaliser Bar
All Rata Wrapped Bale Clamps come standard with an equaliser bar to ensure synchronized hand movement. Equaliser bars on Rata Bale Grabs are also greaeable to ensure a long life & avoid the need of replacement bars when pins wear.

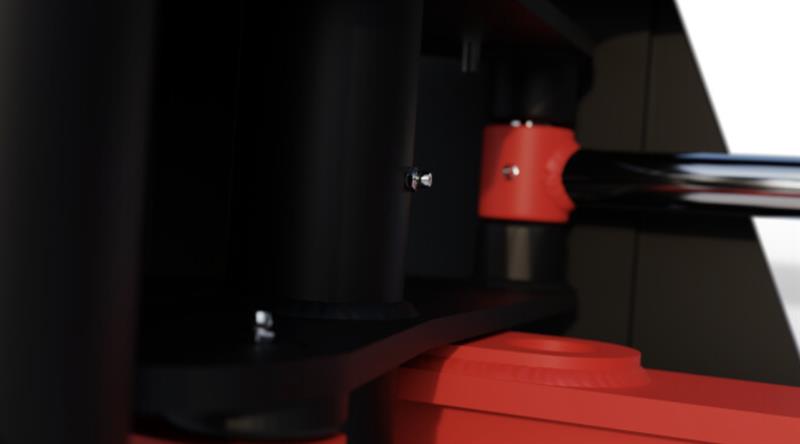

35mm Pivot Pins
The hands & arms of the Rata Bale Clamp are secured to the main frame by large 35mm high tensile machine pins. These massive pins are supported by bushes in the frame & arm itself which maximizes the pin's supported area.
Nudge Bars
Rata Bale Clamps feature vertical nudge bars in which the bale rests along the back frame instead of horizontal bars or plates, the purpose of this is to accommodate the size & shape of any contour bale without wrap damage!
Easy Grease Access
All grease points on Rata Bale Grabs are easily accessed for operator convenience, this enables operators to easily grease points when required without any hassle, keeping you and the Bale Clamp working!
Model (Code) WBC001
Open Width (m) 2.1
Weight (kg) 240
Lift Capacity (kg) 2,100
Heavy Duty Build
Rata Bale Clamps incorporate several features to make them the toughest Wrapped Bale Grabs on the market. Heavy duty steel plate & gusseting such as the above picture ensure great reliability & high lift capacity!
Greasable Equaliser Bar
All Rata Wrapped Bale Clamps come standard with an equaliser bar to ensure synchronized hand movement. Equaliser bars on Rata Bale Grabs are also greaeable to ensure a long life & avoid the need of replacement bars when pins wear.
35mm Pivot Pins
The hands & arms of the Rata Bale Clamp are secured to the main frame by large 35mm high tensile machine pins. These massive pins are supported by bushes in the frame & arm itself which maximizes the pin's supported area.
Nudge Bars
Rata Bale Clamps feature vertical nudge bars in which the bale rests along the back frame instead of horizontal bars or plates, the purpose of this is to accommodate the size & shape of any contour bale without wrap damage!
Easy Grease Access
All grease points on Rata Bale Grabs are easily accessed for operator convenience, this enables operators to easily grease points when required without any hassle, keeping you and the Bale Clamp working!
