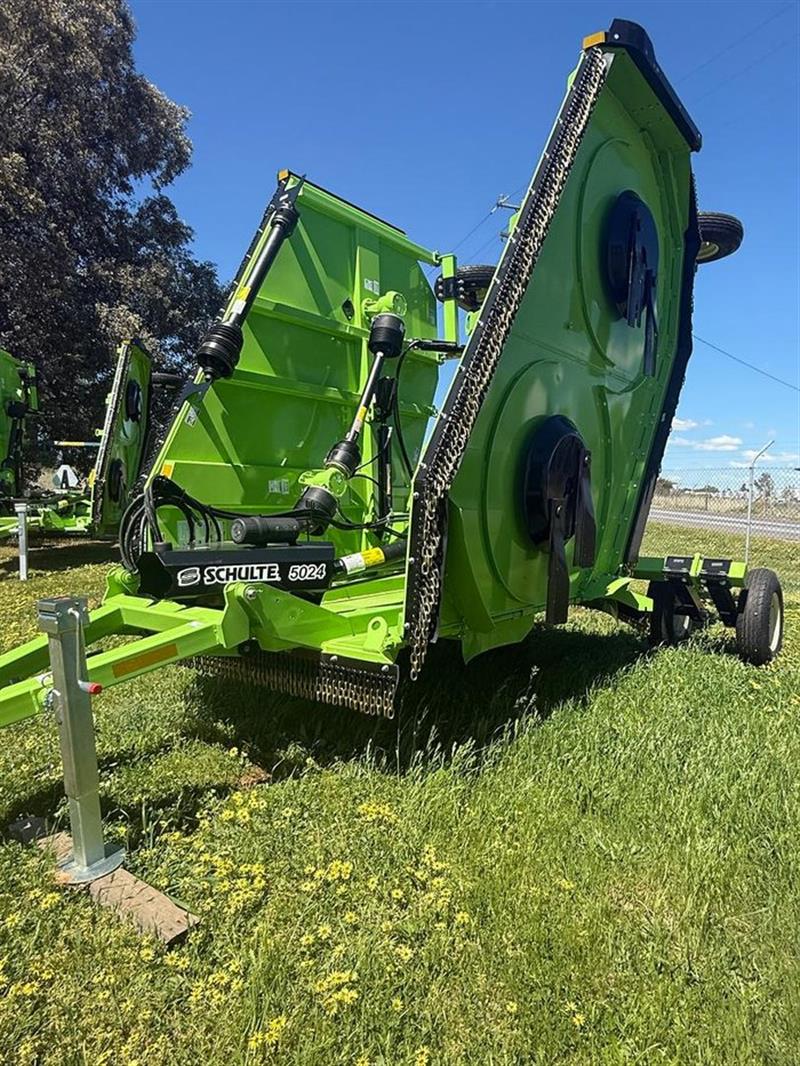

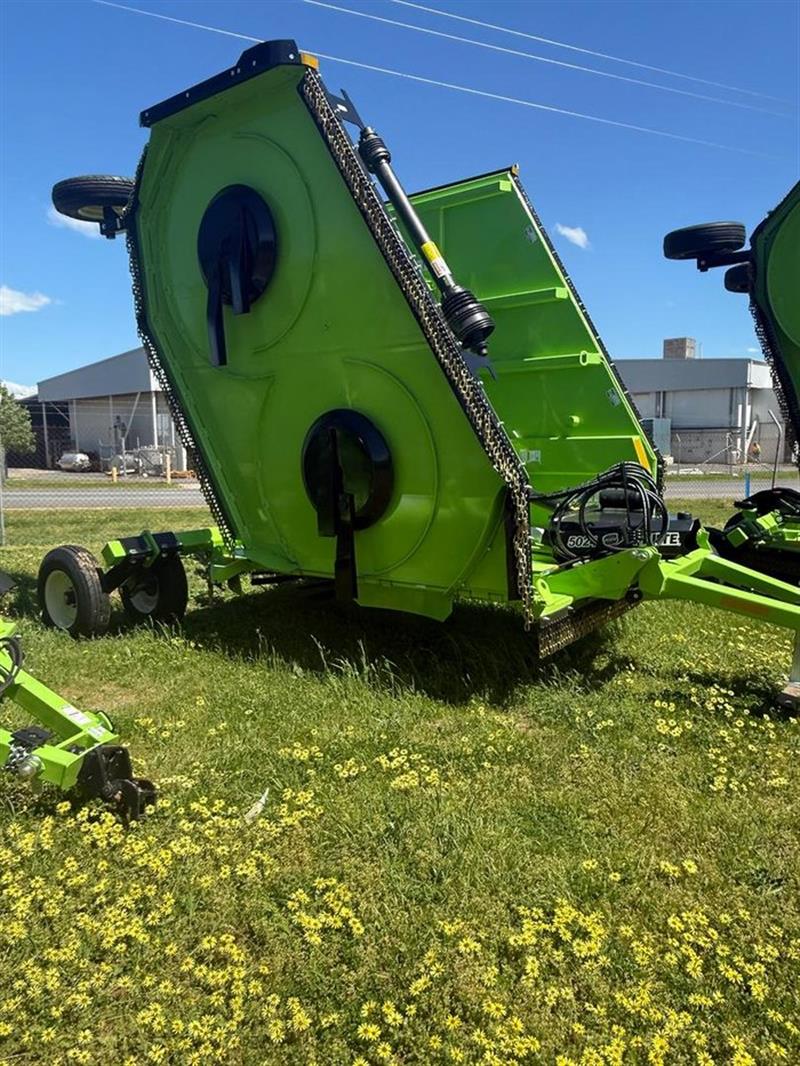

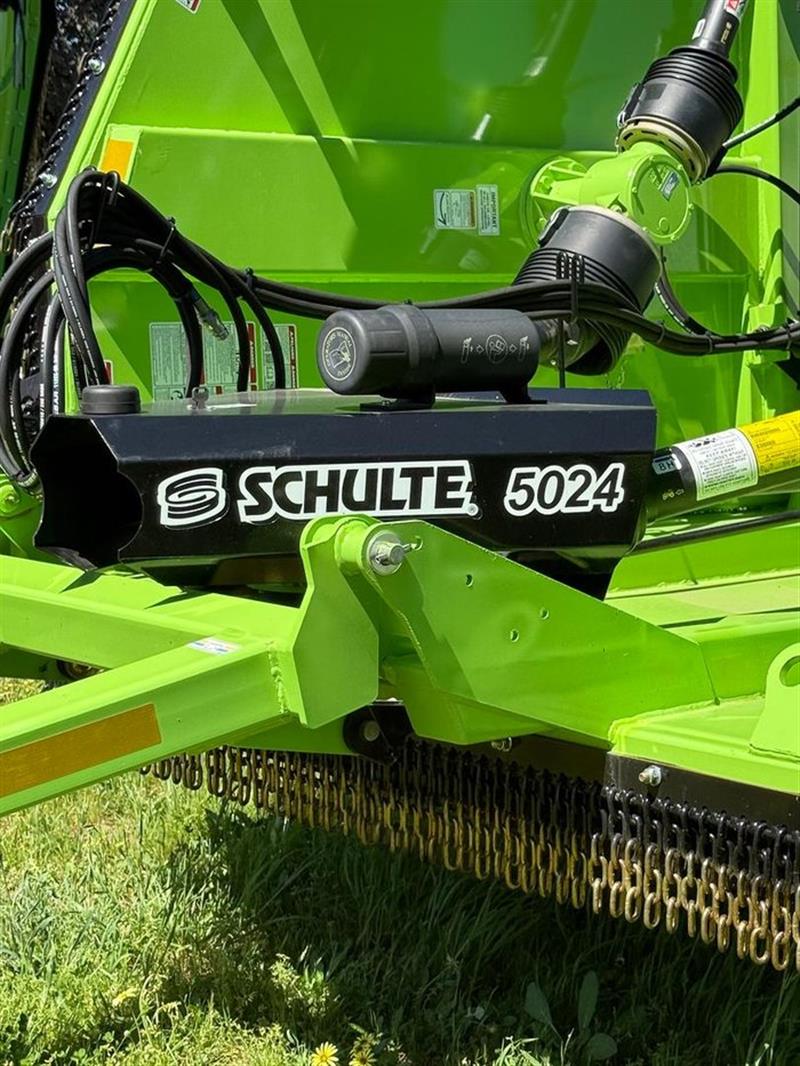

Schulte 5024 mulcher

DEALER COMMENTS
24' Rotary Cutter. 1000 PTO drive. 5 rotors. 260 & 190HP gearboxes with
independent slip clutches so nothing needs to be timed. 3 section, 10-gauge domed
deck with folding & floating 7-gauge wings. Stump-jump pans. . 2 cutting capacity. Deck protection rings. Hydraulic level lift. Single safety
chains and half rubber flaps front & rear. Dual wheels in centre and single wheels on
wings with pneumatic tyres.

Cutting Width 7.42m (24'4)
Tractor PTO Speed 1000 RPM
Overall Width 7.75 m (25'5)
Cutting Height 25mm - 356mm (1 - 14)
Overall Length 5.13 m (17'1)
Cutting Capacity 51mm (2)
Transport Width 2.98 m (9'9)
Divider Gearbox Capacity 260HP
Transport Height 3.56 m (11'8)
Centre & Wing Gearbox Rating 190HP
Deck Thickness 10GA (3.4mm) centre, 7GA (4.6mm) wings
Wing Working Range 15° down to 45° up
Weight 3583kg
Min Tractor HP 120HP

Stock No. COWRA5024
