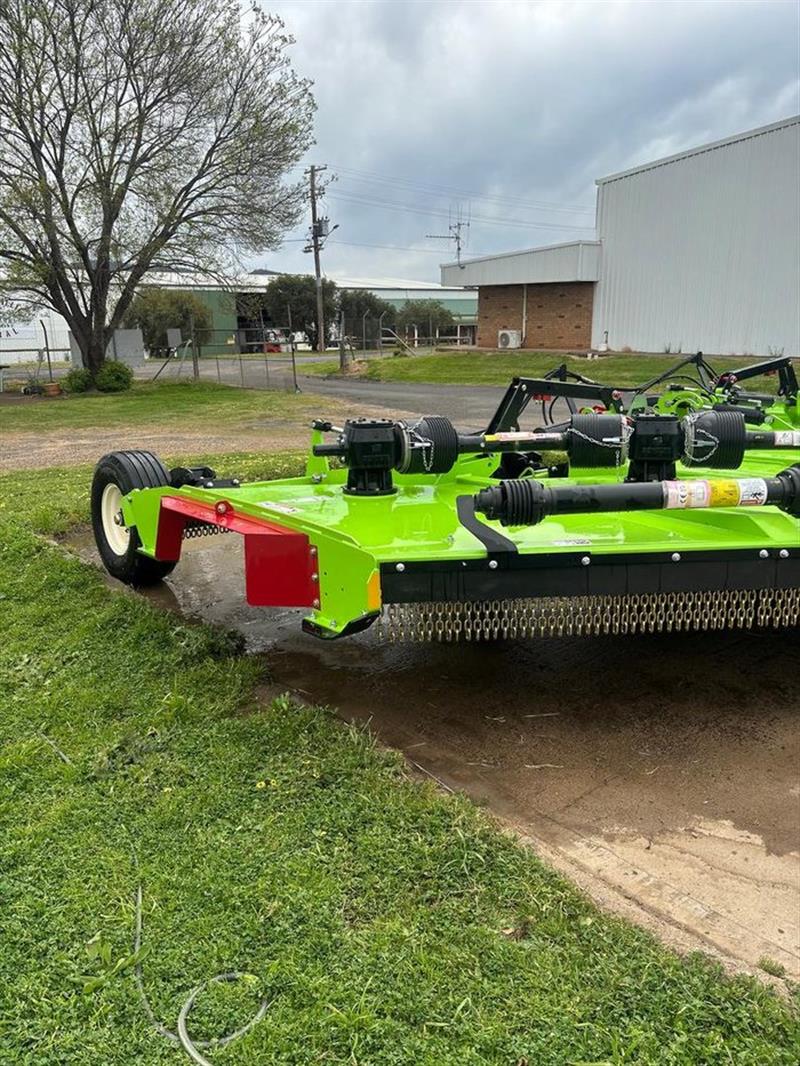

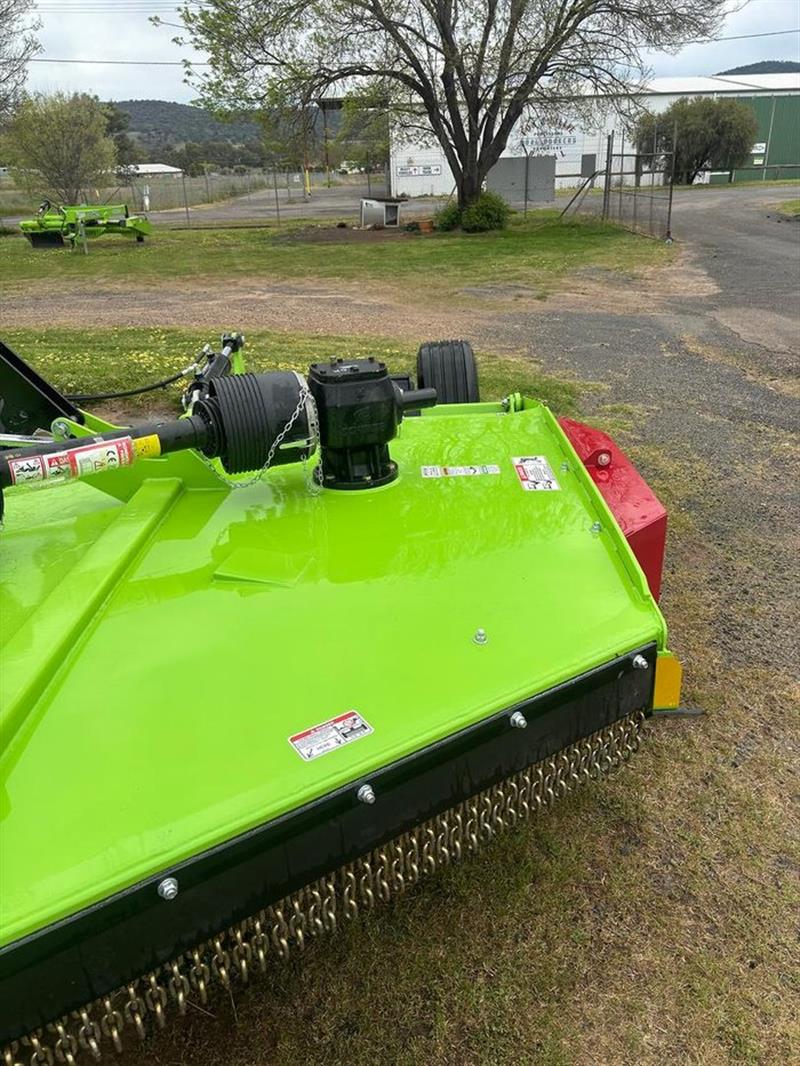

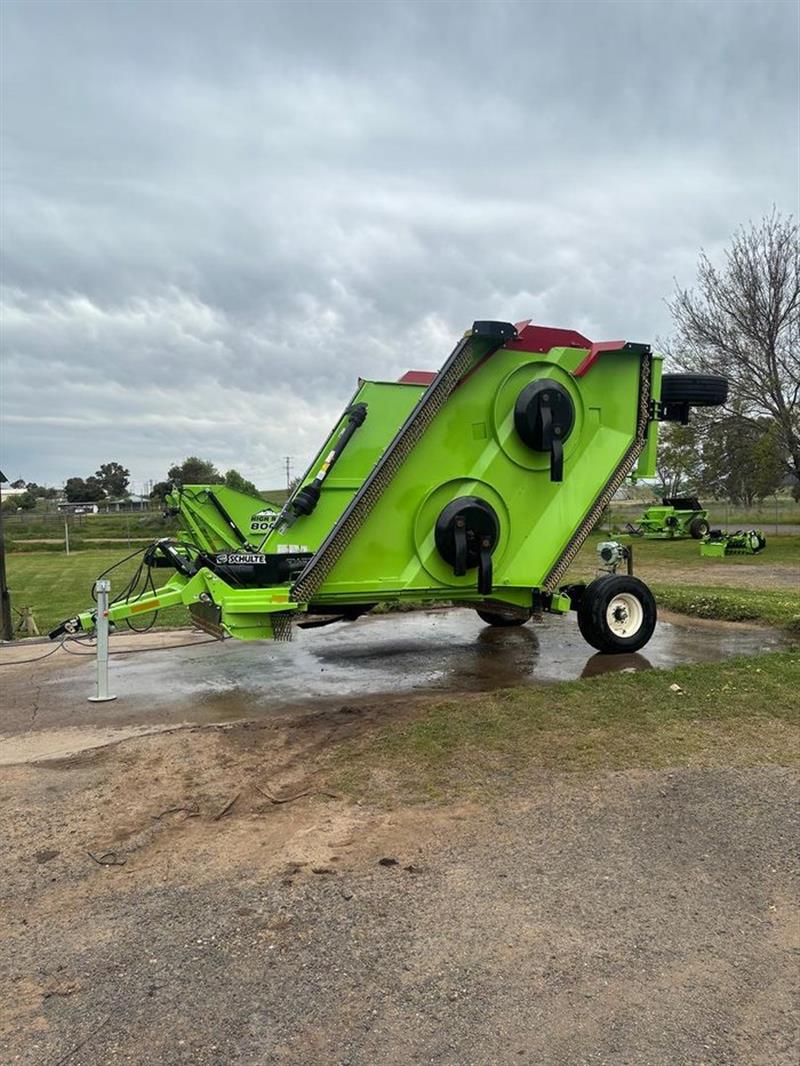

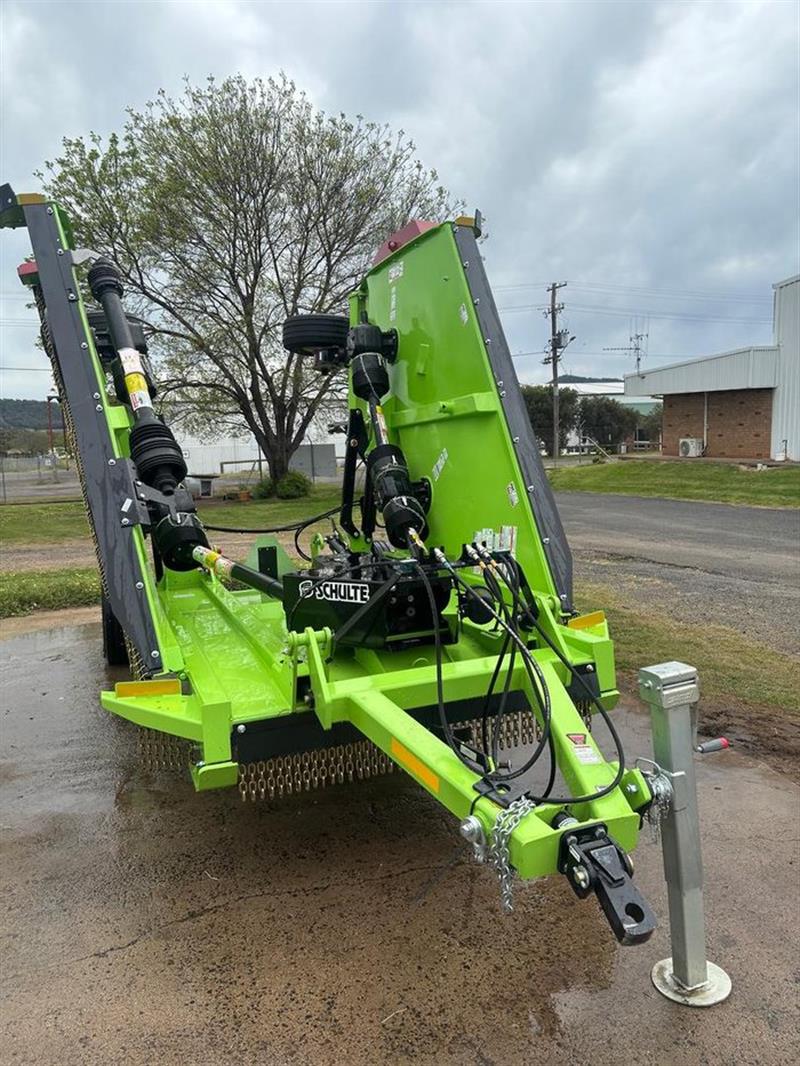

Schulte FX-520 mulcher

DEALER COMMENTS
FX-520 Macadamia Spec
Comes with Side Eject on Both Sides, Forklift Tyres, Double Mulching Blades

20' Rotary Cutter. 1000 PTO drive. 5 rotors. 260 & 190HP gearboxes. 3 section, 7-
gauge domed deck with folding & floating wings. Deck protection rings. Stump
jump pans and single updraft blades. Hydraulic level lift. Single safety chains & half
rubber flaps front & rear. Single wheels on centre and wings all with pneumatic
tyres.


Cutting Width 6.1 m (20')
Tractor PTO Speed 1000 RPM
Overall Width 6.2 m (20'7)
Cutting Height 51mm - 445 mm
Overall Length 6.15 m (20'2)
Cutting Capacity 89mm
Transport Width 2.32 m (7'7)
Divider Gearbox Capacity 260HP
Transport Height 3.05 m (10')
Centre & Wing Gearbox Rating 225HP
Deck Thickness 7GA (0.180,4.6mm)
Wing Working Range 20° down to 90° up
Weight 2960kg
Wing Floating Range 20° down to 40° up
Recommended Tractor HP 100HP

Price $ 104,000 ex GST

Stock No. C52020815410
