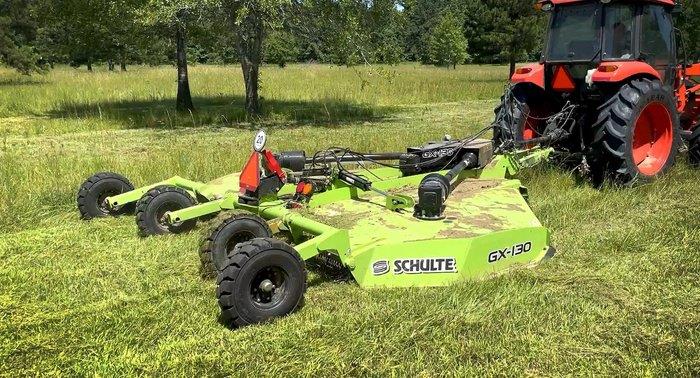

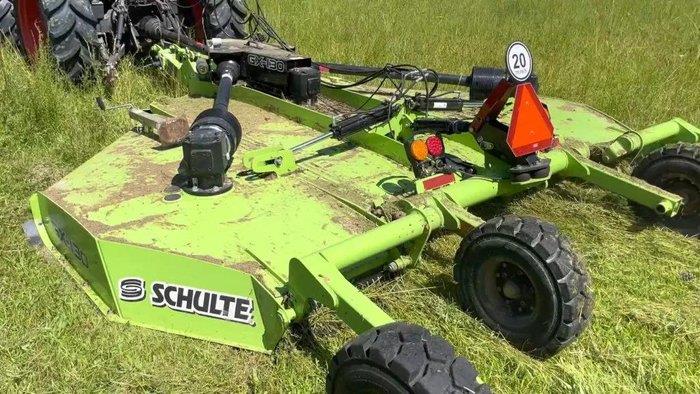

Schulte GX-130 slasher

DEALER COMMENTS
13' General Duty Rotary Cutter. 540 PTO drive. Trailing hitch. 3 rotors. 250 &
130HP gearboxes with independent slip clutches so nothing needs to be timed. 3
section, 10-gauge domed deck with folding & floating wings. Deck protection rings.
Heavy-duty 3/4 thick blade disc with reinforced tappered splined hub. Single supersuction
blades. 2.5 cutting capacity, 6.5overlap on blades. Single safety chains
front & rear with half rubber flaps. Four single wheels, fitted with forklift tyres.
Heavy duty 3 grommet rear suspension. Single levelling rod.

Cutting Width 13’ (3.96m)
Overall Width 13.8’ (4.22m)
Overall Length 16.8’ (5.13m)
Cutting Height 1.75-16.75 (45mm-425mm)
Transport Width 93 (2.36m)
Transport Height 72 (1.83m)
Weight (Depends on Config.) 4725 lbs (2143 kg)
Hitch Weight 1420 lbs (644 kg)
Cutting Capacity 2.5 (89mm)
Minimum Tractor Size 45hp (36kw)
Blade Tip Speed 540 rpm Center - 16,286 ft/min (4964m/min), Wing - 16031 ft/min (4886 m/min)
Blade Overlap 6.5 (165mm)
Divider Gearbox Rating 250hp (186kw)
Center & Wing Gearbox Rating 130hp (97kw)•
540 CV Cat 6
Wing Drive Shafts Cat 5
Deck Thickness .135 (10ga or 3.4mm)
Side Skirt Depth & Thickness 13.6 (346mm) 1/4 (6.4mm)
Wing Working Range 25° down to 90° up
Wing Floating Range 25° down to 30° up

Options - Mulching Blades in Lieu of Single Blades
Side Eject Option
Forklift Tyres

Price- $51,000 ex GST

Stock No. STOCKGX130
