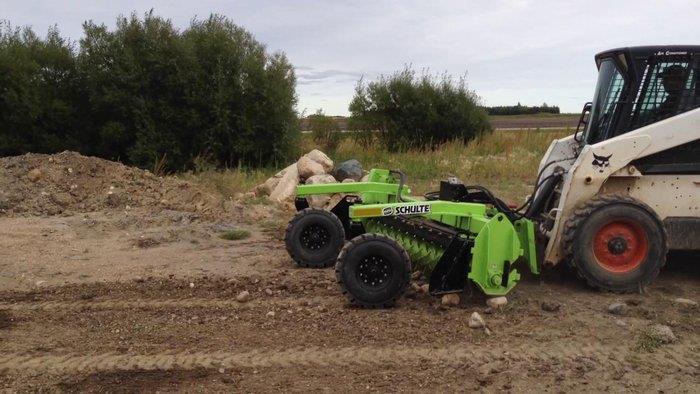

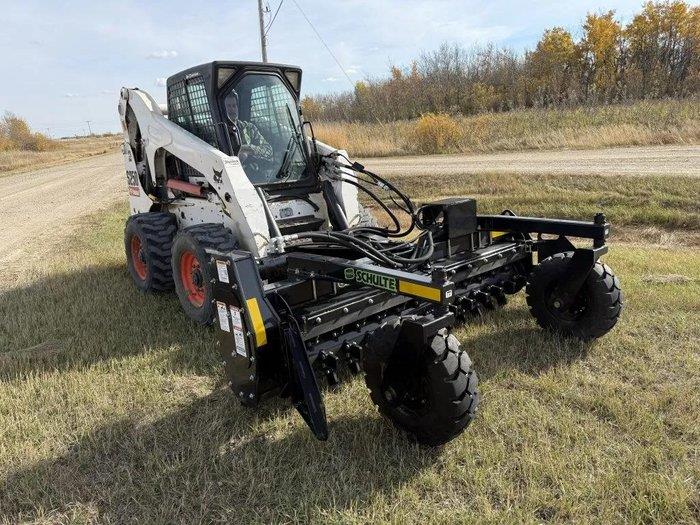

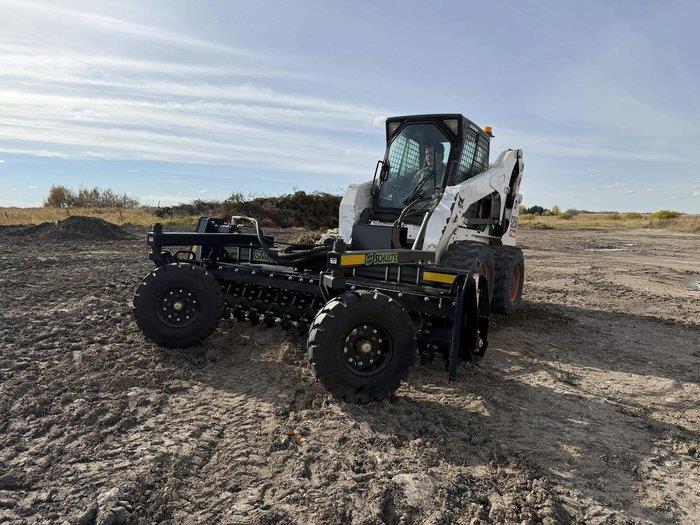

Schulte SMR800 rock picker

8' wide drum constructed of 8 5/8 (219mm) diameter heavy wall HSS pipe with
either 4 or 2.5 x 5/8 thick bolt-on Hardox-450 teeth. Hydraulic pivot that adjusts
the drum angle from 0°-20° to the left or right. Floating mount so the drum stays in
contact with the ground. Shifts rock from 2-25. 15 cubic inch hydraulic motor
standard. 2 castor wheels fitted with fork tyres. Electric interface to suit
JCB/Takeuchi, Volvo, Kubota, CNH/GEHL/Mustang, CAT 14 & John Deere skid steers.
(Bobcat interface at additional cost).

Narrow, 2591 mm (8’ 6) transport width.
Weight 613kg
Drum width 2215 mm
Tractor Size 35HP to 100 HP (30-60kW)
Maximum Ground Speed 8km/h
Recommend Ground Speed 3km/h
Tyres 16.5/6.5 x 8 Transport width 2591 mm (8'6)
Transport length 1702mm (67)
Drum Speed 102 RPM @ 540 input

Stock No. STOCKSMR800
